WASTEWATER TREATMENT PLANT DESIGN MODERN & SOPHISTICATED TECHNOLOGY
Overview
Since a wastewater treatment plant is a magnanimous and huge-scale deliverable, we send in our best design and technical team to execute it as well as ensure that all the parameters of the Plants are according to the discussed plan and excel in quality. The solution comprises multi-discipline plant design applications covering.
The site, process, environment, architectural, instrumentation and control, electrical, mechanical equipment, mechanical and structural piping, supports, structural steel, and reinforced concrete.
Ecologic India Water Solutions is engaged in providing turnkey project services, turnkey solutions, turnkey installation services, turnkey design services across the nation. Assisted by our team of professionals we work with our clients to determine the most effective design as per the client’s requirement. Our turnkey solutions and turnkey project services are accomplished in a well-defined and planned manner.
MULTIPLE EFFECT EVAPORATOR WITH ATFD
A falling film evaporator is an industrial device to concentrate solutions, especially with heat sensitive components. The evaporator is a special type of heat exchanger. The falling film principle requires an even distribution of the feed liquid. To achieve this distribution one or more distribution trays are in the top head of the evaporator over the complete tube sheet.
Wet product in form of slurry (range from 30 to 50 % w/w) fed through the inlet nozzle is conveyed steadily by the rotor blades along the heated dryer wall in a thin film (With the help of steam or Hot Oil or any heating media), normally several millimeters thick, preventing buildup and continuously exposing every particle of the product to the heated surface. Vapors pass counter currently to the product flow and exit the dryer through the feed nozzle, as configured above. Moisture levels from a few tenths of a percent up to 5%+ can be achieved.
TORAY'S ADVANCED MEMBRANE SEPARATION TECHNOLOGY
The "MEMBRAY" submerged flat sheet membrane module, when used as a component of a membrane bioreactor (MBR) system, effectively removes suspended solids. This innovative microfiltration module in a plate and-frame configuration with flat sheet membranes was developed thanks to over 25 years of experience in high-quality membrane products and our non-compromise R&D, manufacturing, and application expertise.
MBR technology enhances wastewater treatment efficiency

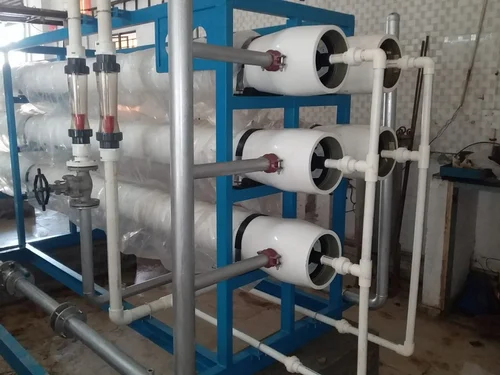

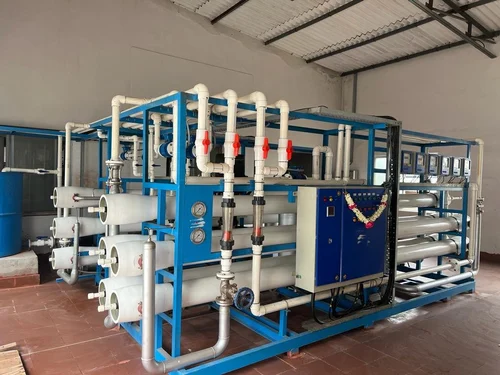

Using membranes to separate sludge ensures much higher quality for treated water free from suspended solids. Combination with RO membranes allow producing water quality as good as potable water
Membranes can retain activated sludge at high concentrations, allowing BOD as well as nitrogen to be removed more efficiently.
Unique membrane configuration having an immense number of minuscule pores delivers stable high-water permeability with minimal clogging and higher permeated water quality.
The "MEMBRAY" module configuration comprises an element block and an aeration block. The element block contains several membrane elements stacked at equal intervals, each of which has flat sheet membranes attached on both sides of a supporting panel.
Each element is connected via a tube to a permeated water manifold. The aeration block consists of air diffusers used to supply air
MBR technology
Smaller footprint
Fewer chemical cleaning requirements
